PORTAL-DOORS Project NPDS Cyberinfrastructure System Design
For comprehensive reports on NPDS, please refer to DOORS to the Semantic Web and Grid With a PORTAL for Biomedical Computing published online 3 August 2007 in the journal IEEE Transactions on Information Technology in Biomedicine and A Distributed Infrastructure for Metadata about Metadata: The HDMM Architectural Style and PORTAL-DOORS System published online 1 June 2010 in the journal Future Internet. More recent information can be found in the documents available at PdpInfo Reports. These reports contain explanations of the principles, concepts, models, schemas, URL and querystring designs used by PDP for NPDS.
Page Contents
- Abstract from 2006 Blueprint Paper for the Nexus-PORTAL-DOORS System (NPDS)
- Hierarchically Distributed Mobile Metadata (HDMM) as an Architectural Style
- Architectural Design of NPDS Cyberinfrastructure
- Cyberinfrastructure System versus Tools and Applications versus Content
- General Usage Scenarios for NPDS
- Specific Use Cases for NPDS
See also other NPDS related papers and presentations.
Abstract from the original 2006 Blueprint Paper for the PORTAL-DOORS System
Title: DOORS to the Semantic Web and Grid with a PORTAL for Biomedical Computing
Abstract: The semantic web remains in the early stages of development. It has not yet achieved the goals envisioned by its founders as a pervasive web of distributed knowledge and intelligence. Success will be attained when a dynamic synergism can be created between people and a sufficient number of infrastructure systems and tools for the semantic web in analogy with those for the original web. The domain name system (DNS), web browsers, and the benefits of publishing web pages motivated many people to register domain names and publish websites on the original web. An analogous resource label system, semantic search applications, and the benefits of collaborative semantic networks will motivate people to register resource labels and publish resource descriptions on the semantic web. The Domain Ontology Oriented Resource System (DOORS) and Problem Oriented Registry of Tags And Labels (PORTAL) are proposed as infrastructure systems for resource metadata within a paradigm that can serve as a bridge between the original web and the semantic web. The Internet Registry Information Service (IRIS) registers domain names while the Domain Name System (DNS) publishes domain addresses with mapping of names to addresses for the original web. Analogously, PORTAL registers resource labels and tags while DOORS publishes resource locations and descriptions with mapping of labels to locations for the semantic web. BioPORT is proposed as a prototype PORTAL registry specific for the problem domain of biomedical computing.
Citation: Carl Taswell, 2008, IEEE Transactions on Information Technology in Biomedicine Vol 12 No 2 pages 191-204; manuscript received 31 October 2006, published online 3 August 2007.
Hierarchically Distributed Mobile Metadata (HDMM) as an Architectural Style
IRIS registries and DNS directories provide the model for the architectural style that inspired the design of PORTAL registries and DOORS directories. The most essential characteristics of this architectural style can be summarized by the following principles:
- Pervasively distributed and shared infrastructure, content, and control of content (including distributed and shared control over both the contribution and distribution of the content).
- A hierarchy of both authoritative and non-authoritative servers (root, primary, secondary, forwarding and caching servers, etc) enabling global interoperable communication while permitting local control of policies.
- A separation of concerns with registries for identification and directories for location.
- A freedom of choice in the selection of identifiers with purposeful absence of any requirement to use the same top-level root "name" or "label" for all identifiers, thus enabling essentially unrestricted choice of naming or labeling schemes for identification and avoiding monopolistic control by any single organization.
- A focus on moving the metadata for "who what where" as fast as possible from servers in response to requests from clients (that access non-authoritative local forwarding and caching servers updated regularly by the authoritative servers).
Users of today's web browsers may not be familiar with the engineering of the hidden infrastructure system that enables them to navigate to any web site around the world. But it is the IRIS-DNS infrastructure system, which is responsible for registering domain names and mapping them to numerical IP addresses, that makes it possible for the user to browse the web in such an effortless manner almost always without ever typing or even seeing the numerical IP addresses.
Moreover, from the user's perspective, what is most important now is that the speed of this conversion from domain name to IP address occurs so rapidly that the user does not experience it as a hindrance or delay in browsing. Even if the particular web page itself downloads and displays slowly, usually at least the web site address is found quickly. And that happens because the small amount of metadata (domain name and IP address) moves so quickly across the internet even if the larger amount of data (web page text and media) does not. Because of this important point, the phrase Hierarchically Distributed Mobile Metadata (HDMM) is introduced (9 May 2009) here as a name for this architectural style that characterizes both IRIS-DNS and PORTAL-DOORS.
Whereas IRIS-DNS implements the HDMM architectural style for the original web, PORTAL-DOORS extends and implements this style for the semantic web and grid. Further, PORTAL-DOORS enhances the separation of concerns principle to include the additional notion of separately optimising directories for semantic services (with use of the RDF/OWL/SPARQL stack of technologies) and the registries for lexical services (with use of character string processing and only those XML technologies that do not require use of RDF triples). This separation of concerns enables the back-end use of traditional relational database stores for PORTAL registries and RDF-triple database stores for DOORS directories. Of course, hybrid stores can be used for both PORTAL and DOORS.
Architectural Design of PORTAL-DOORS System Infrastructure
In accordance with the HDMM architectural style, PORTAL-DOORS has been designed to serve the semantic web and grid in a manner analogous to the way that IRIS-DNS has served the original web. The blueprint paper (see abstract) specifying the original design for PORTAL-DOORS was submitted to IEEE in 2006 by Carl Taswell, published online in 2007 at www.IEEE.org, and appeared in print in IEEE Transactions on Information Technology in Biomedicine 2008 Vol 12 No 2 pages 191-204. The figures and tables below have been adapted from the original paper and updated with revisions. Note that the original separate design of PORTAL registries and DOORS directories has been supplemented with a new bootstrapping combined design with integrated NEXUS registrars. Both can coexist together.

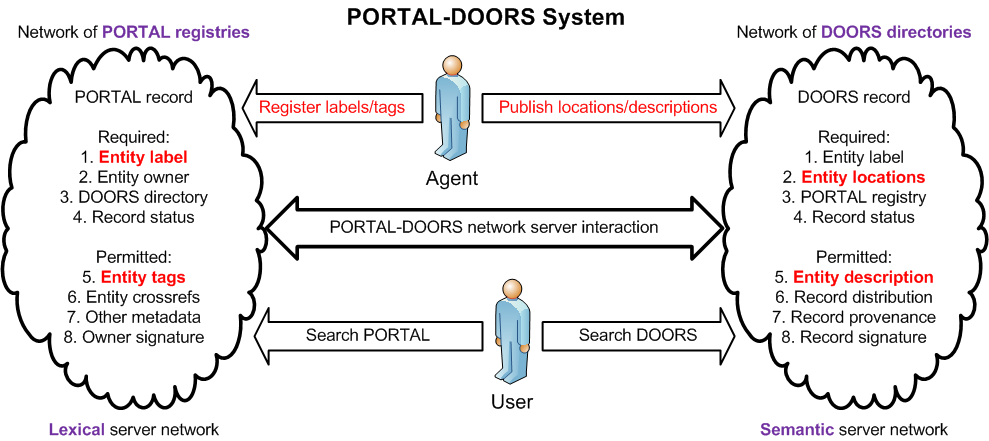

Resource metadata is registered and published by agents for search by users in the PORTAL-DOORS server networks. Semantic services here are defined as those using the RDF/OWL/SPARQL stack of technologies, whereas lexical services are defined as those using only character string processing. Fields within data records are considered required or permitted with respect to the schemas maintained by the root servers. The figure above displays only the most important fields; for all fields, see reference model implemented with XML Schema.

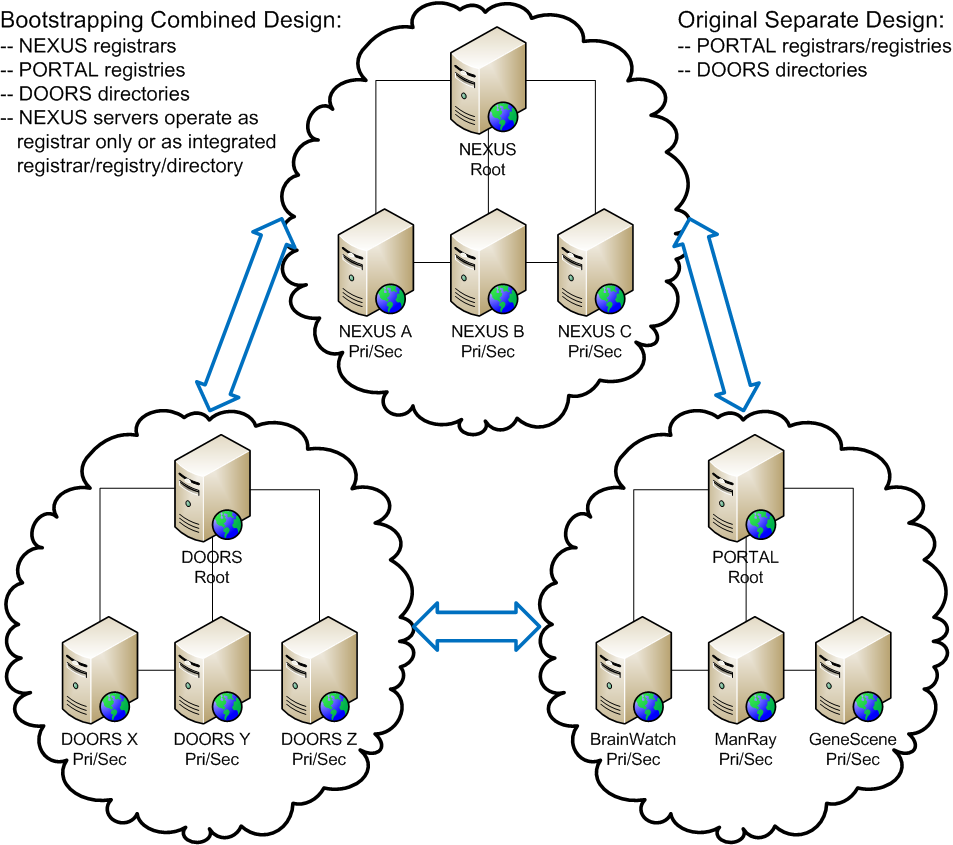

Resource metadata server networks for PORTAL registering of labels and tags and DOORS publishing of locations and descriptions are analogous to domain metadata server networks for IRIS registering of names and DNS publishing of addresses. Primary PORTAL registries may be established by any individual or organization with or without any local policies governing registration of resources. Examples shown here (GeneScene, BrainWatch, ManRay) implement policies with a problem-oriented focus on their respective specialty domains. Specific criteria for registration are determined by the local schema of the PORTAL primary which must nevertheless comply with the global requirements of the PORTAL root.
